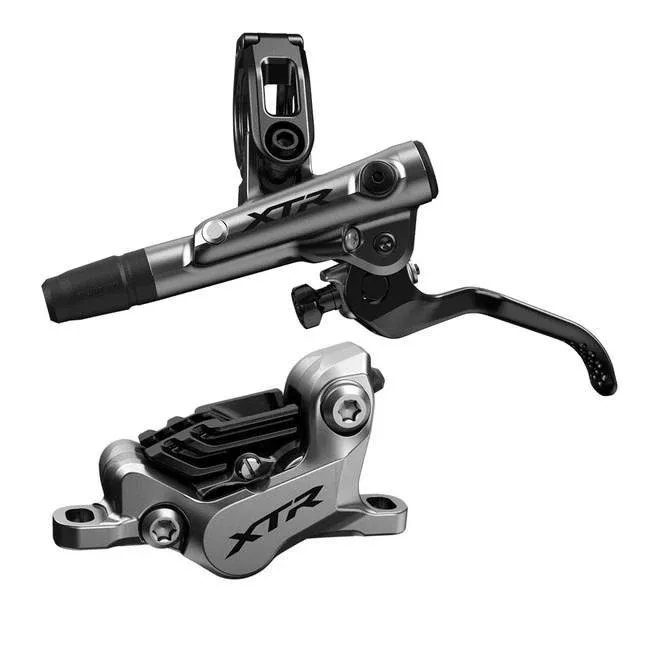

Shimano’s XTR “Trail” BR-M9120 disc brake set includes the BL-M9120 brake lever and BR-M9120 4-piston caliper. The XTR Trail lever pairs with the new 4-piston Trail caliper offering Rider Tuned stopping power for the ever more capable breed of modern mountain bikes. With tool-free reach adjust and Shimano’s new I-spec EV standard, the BL-M9120 lever continues to set the standard for mountain bike brakes. The XTR M9120 caliper features a Mono-Body design which is machined from a single cold-forged block to maximize rigidity and four ceramic pistons for perfect, Rider Tuned stopping power.
Brake Set Includes:
– 1 Qty Brake Lever (front or rear as specified)
– 1 Qty Caliper
– Brake hose (not installed) – Front 1000mm, Rear – 1700mm
– Brake Pads: D02s metal
– All fittings needed for install
*Mineral oil not included
Details:
Shimano BL-M9120 Disc Brake Lever
- Model No: BL-M9120
- Series: XTR M9100
- Mount: Clamp band
- I-SPEC EV compatible
Shimano BR-M9120 Disc Brake Caliper
- Model No: BR-M9120
- Series: XTR M9100
- Pistons: 4
- Mount: Post mount
- Brake pads included
Compatibility:
- Lever blade: BL-M9120 lever member unit
- Brake hose: SM-BH90-SBM
- Oil: Shimano Hydraulic Mineral Oil
- Brake Pads: D02S metal, D03s resin, N03A resin, N04C resin
