SILENT, INSTANT ENGAGEMENT.

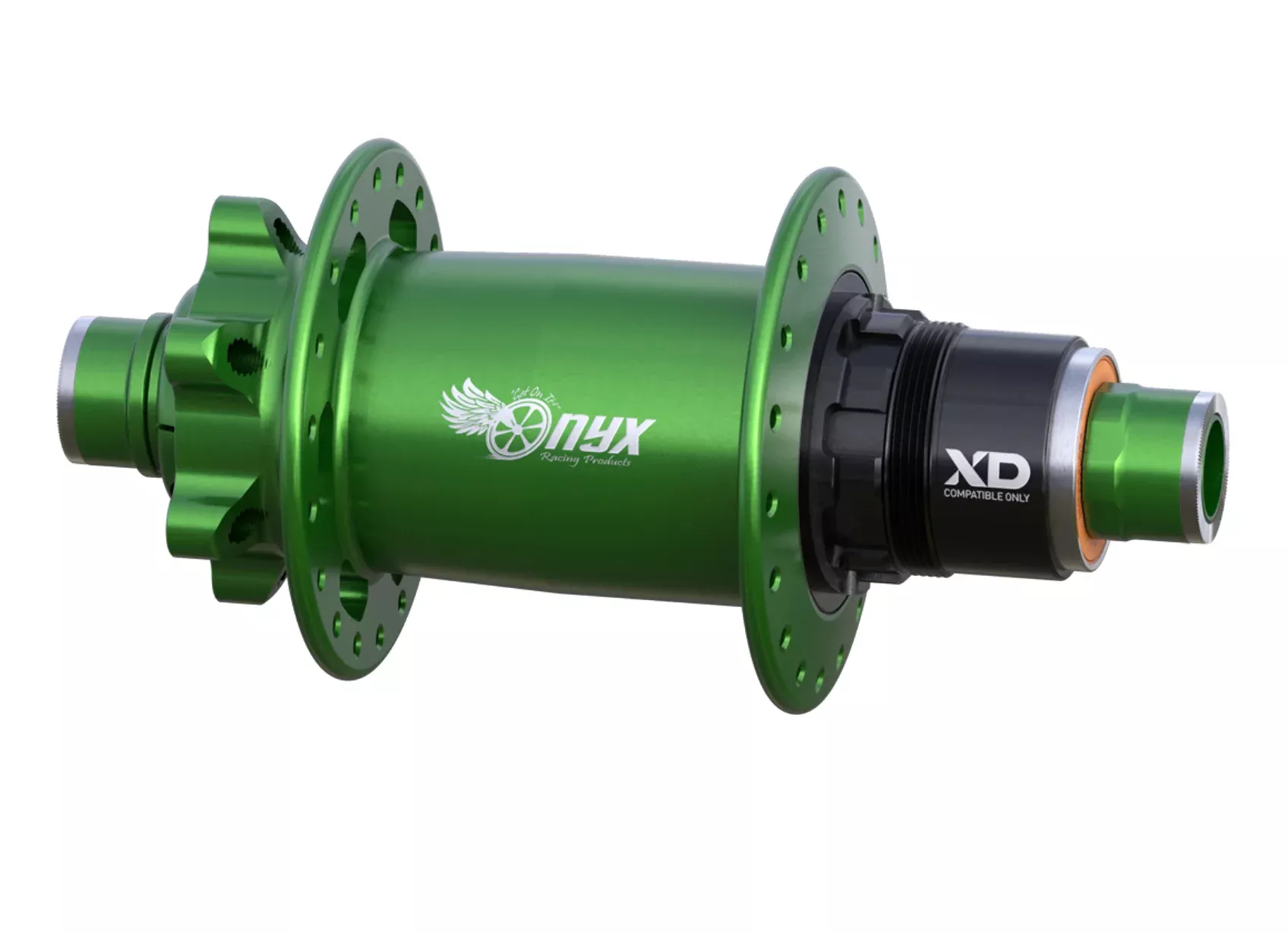

Made in the USA, Onyx Racing hubs have shells made from 7075 aluminum alloy and come in a huge range of powder coat and anodized colors.
Available to order – choose any combination of colour and freehub:
Hub Shell Colour: Available in 11 anodised and 13 powdercoated colours
End Caps: Available in 10 anodised colours
Freehub Body: Choose from SRAM XD/XDR or Shimano HG
Onyx Racing uses sprag clutches in their rear bike hubs. Sprag clutches are unique because they engage instantly but operate silently. In addition, all sprag elements maintain gentle contact with the driver and hub body, gliding with minimal friction until torque is applied. Their unusual shape allows freewheeling in only one direction. When a rider pedals to induce torque, the sprags rock slightly to wedge between the hub and driver, giving Onyx hubs infinite points of engagement, always ready to go when you are. Since there are no teeth or spring-engaged pawls like those found in conventional ratchet mechanisms, Onyx hubs are almost noiseless during freewheeling.
Wheelbuilding Information
| A – Hub Center To Flange Center, Non-Drive Side (mm) | 35.7 |
|---|---|
| B – Hub Center To Flange Center, Drive Side (mm) | 22.9 |
| C – Axle Width (mm) | 148 |
| Spoke Hole Circle Diameter, Drive Side (mm) | 60 |
| Spoke Hole Circle Diameter, Non-Drive Side (mm) | 60 |
| Spoke Hole Counts Available | 28/32/36 |
