Features
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Triple seals prevent leakage
- Corrugated ribs prevent flashover
- Copper core aids in heat removal
Specs

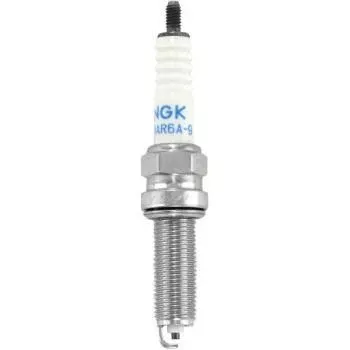

| Product Name | Spark Plug |
| Type | Resistor Type |
| Style | LMAR6A-9 |
| Model | Standard |
| Terminal Configuration | Threaded Stud |
| Center Electrode Projection | Non-Projected |
| Electrode Tip Material | Nickel Alloy |
| Center Electrode Type | Standard |
| Ground Electrode Configuration | Single |
| Ground Electrode Shape | Standard |
| Thread Reach | 26.5 mm / 1-1/32″ |
| Hex Size | 9/16″ / 14.3 mm |
| Heat Range | 6 |
| Spark Gap | 0.035″ / 0.9 mm / 0,9 mm (0.035″) |
| Electrical Resistance | 5k Ohms |
| Units | Each |
| Riding Style | Off-Road / Snow / UTV / Watercraft / Adventure Touring / Dual-Sport / ATV / Street |
FITMENT:
| 2016-2020 | Yamaha | YFM 700 Grizzly EPS 4×4 | – | – |
| 2011-2014 | Yamaha | YFM 550 Grizzly EPS 4×4 | – | – |
| 2009-2014 | Yamaha | YFM 550 Grizzly 4×4 |
