Features
- The ultimate in the evolution of spark plug technology and performance from the industry leader
- The iridium electrode is 25% smaller than a platinum electrode, and it’s just 1/4 the size of a conventional nickel electrode
- Ultra-small diameter center electrode reduces voltage requirement and extends ignition system life
- New metal shell plating has enhanced anti-corrosion qualities
Specs

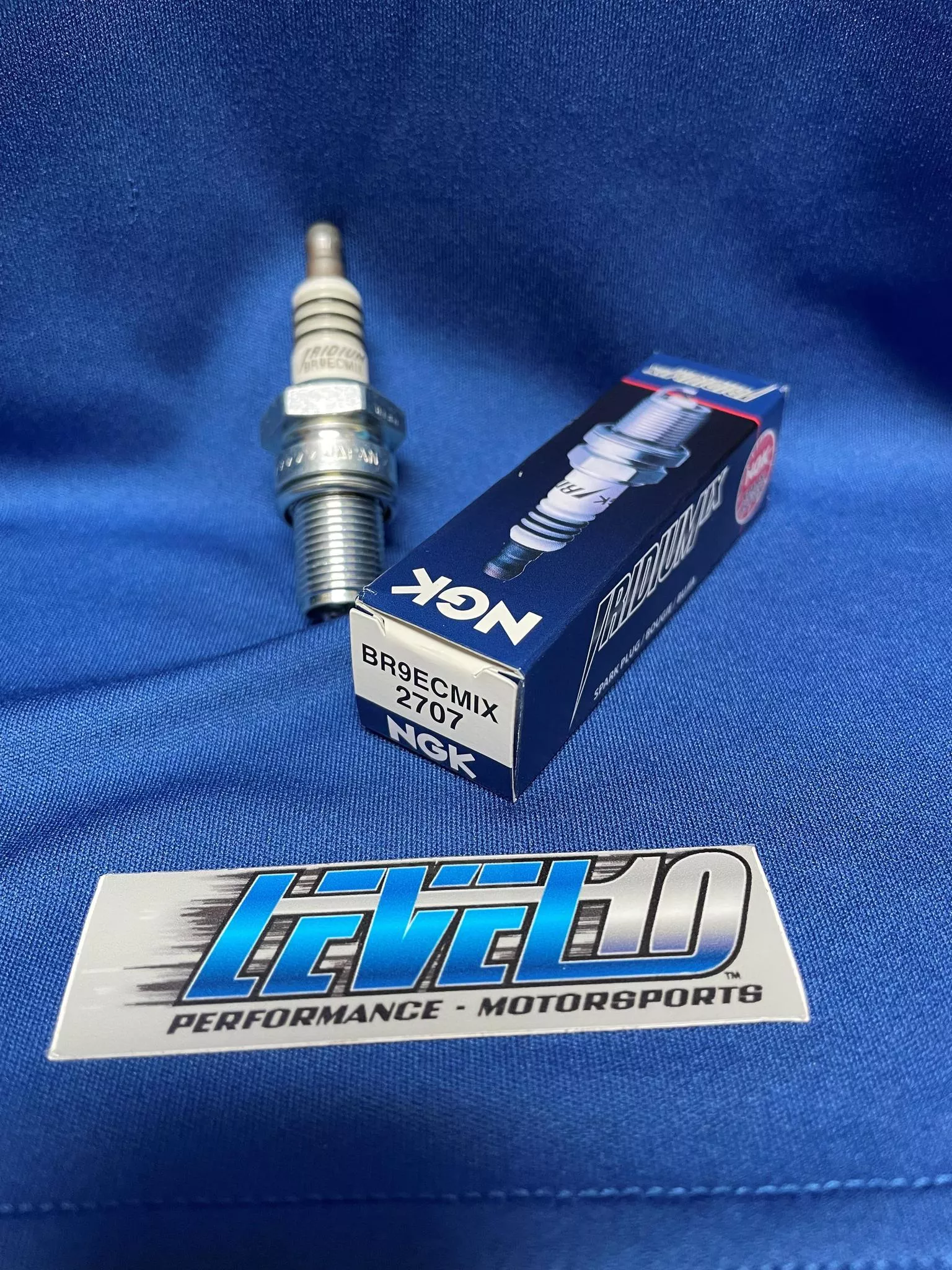

| Product Name | Spark Plug |
| Type | Resistor |
| Style | BR9ECMIX |
| Model | Iridium IX |
| Terminal Configuration | Solid Terminal |
| Center Electrode Projection | Non-Projected |
| Electrode Tip Material | Iridium |
| Center Electrode Type | Necked Down |
| Ground Electrode Configuration | Single |
| Ground Electrode Shape | Grooved |
| Thread Reach | 19.1 mm / 3/4″ |
| Hex Size | 13/16″ / 20.6 mm |
| Heat Range | 7 |
| Spark Gap | 0.8 mm / 0.031″ |
| Electrical Resistance | 5k Ohms |
| Units | Each |
| Riding Style | Off-Road / Street |
FITMENT:
| 2017-2020 | Husqvarna | TX 125 | – | – |
| 2017-2020 | Husqvarna | TE 150 | – | – |
| 2017-2020 | KTM | 150 XC-W | – | – |
| 2017-2019 | KTM | 125 XC-W |
