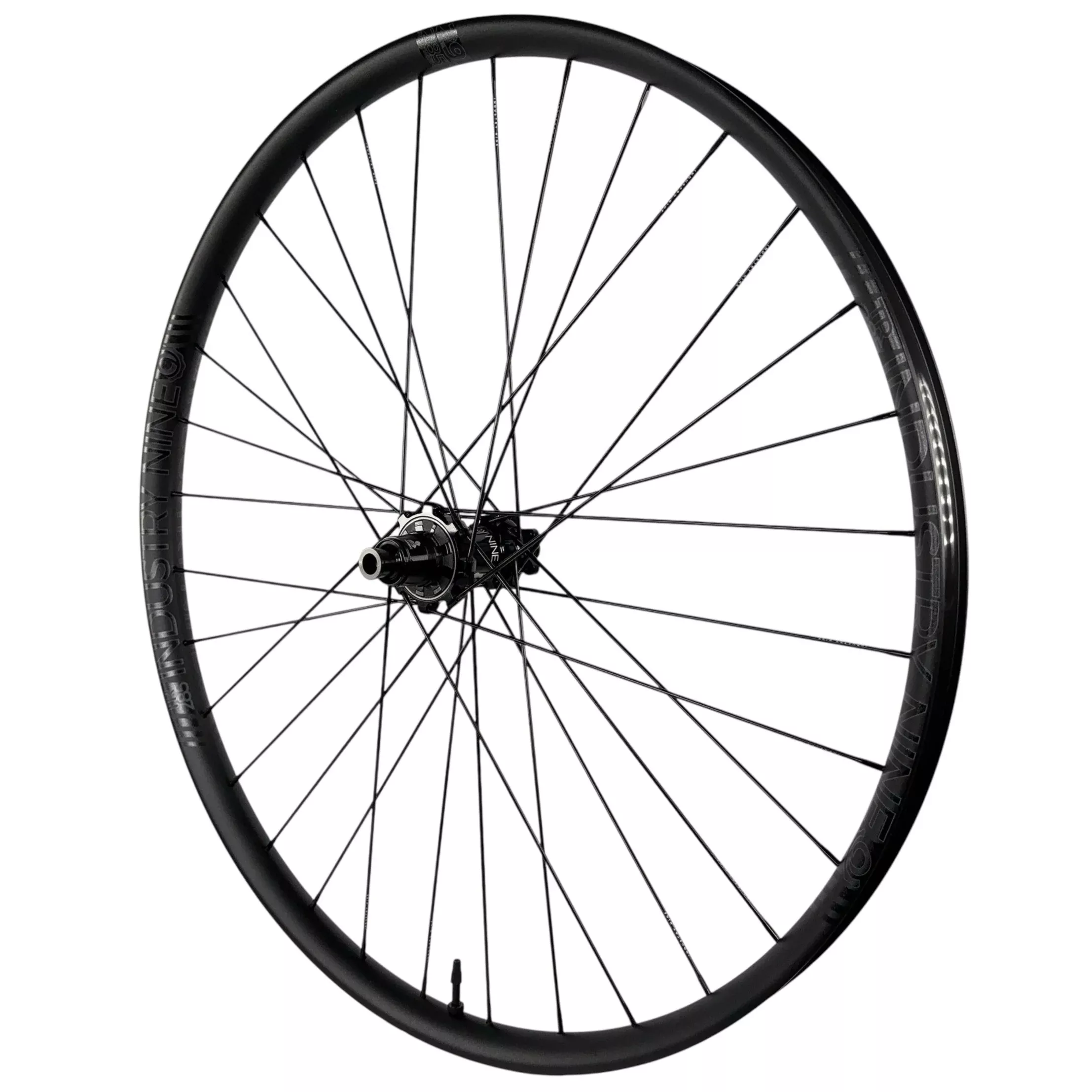

Designed to conquer technical singletrack while striking the ideal balance of weight, durability, and value, the Hydra2 Trail 6-Bolt Rear Wheel is ready for all-day adventures. Its alloy rim, featuring a wide, hollow bead wall, guards against pinch flats, and Hydra2’s near-instant engagement gives you a quick burst out of corners and up climbs. With i9’s rugged straight-pull aluminum spokes, this wheel is a no-compromise choice, built to handle long hours in the saddle without fail.
Industry Nine Hydra 2 Trail Features
- A 65% thicker axle that’s been redesigned to dissipate stress more effectively
- Larger 6903 bearings throughout, and a new labyrinth channel and full-contact radial lip seal to keep out elements that cause premature bearing wear
- Quicker 0.41° engagement and 60% less coasting drag than its predecessor
- A new, foolproof design to ensure consistent bearing preload, regardless of variations in axle tightness
- Larger, 5.5mm pawl pockets that distribute force 26% better, preventing deformation of the pockets over years of use
- Tougher metal for the drive ring and an extra tooth on each pawl, guaranteeing Hydra2 can easily handle the torque of the most powerful e-bike motors
Industry Nine Trail Specs
- Rear Wheel
- Hub
- Rim
- Spoke
- Parts/Upgrades
Industry Nine Trail Rear Wheel
| Model: |
Industry Nine Hydra2 Trail |
| Built For: |
Singletrack Seekers and Trail Tamers |
| Position: |
Rear |
| Warranty: |
2 Years (Click here for details) |
| Weight: |
910 grams (29″) |
| Weight Limit: |
250lbs or 113kg max |
Wheel is shipped tubeless-ready and includes the rim tape and valve installed.
I9 Hydra 2 Hub
| Model: |
Industry Nine Hydra2 |
| Rotor Mount: |
6-Bolt |
| Holes: |
32 hole |
| Points of Engagement: |
870 POE |
| Drive Ring: |
145 tooth |
| Pawls: |
6 |
| Engagement: |
.41 degrees |
| Bearing: |
Enduro |
| Material: |
Aluminum |
I9 Trail 285 Rim
| Model: |
Industry Nine Trail 285 |
| Tire Width: |
2.20″ – 2.50″ |
| Inner Rim Width: |
28.5mm |
| Outer Rim Width: |
36mm |
| Valve: |
40mm Presta (color matched to hub) |
| Material: |
Aluminum |
| Rim Tape: |
Included & Installed |
| Tubeless Ready: |
Yes |
| Rim Weight: |
455 grams (29″) |
Industry Nine Alloy Spoke
| Model: |
i9 Proprietary Alloy Spoke |
| Shape: |
Straight-Pull |
| Material: |
Machined Aluminum |
| Nipple: |
i9 Integrated, Aluminum |
| Spoke count: |
32 |
Hydra 2 Ceramic Upgrades
| Freehub: |
Ceramic Freehub Kit |
| Bearings: |
Ceramic Bearing Kit |
Hydra 2 Trail Replacement Parts
| Rim: |
Trail 285 Rim |
| Freehub: |
Complete Freehub Kit |
| Bearing: |
Hub Bearing Kit |
| Bearing Tool Kit: |
Bearing Tool Kit |
| Front Axle: |
Front Hub Axle |
| Rear Axle: |
Rear Hub Axle |
| Front EndCaps: |
Front EndCaps |
| Rear EndCaps: |
Rear EndCaps |
| Pawl: |
Freehub Pawl |
| Pawl Spring: |
Freehub Pawl Spring |
| Tubeless Valves: |
Tubeless Valves |
Industry Nine Freehub Compatibility
The cassette that you plan to mount to your rear Industry Nine hub determines the freehub type you need. Below is a quick guide for the most common cassette types. Please contact us before you order if you have any questions about compatibility with your bike.
Cassette Type:
|
I9 Freehub:
|
| Shimano 12-speed |
Micro Spline (MS) |
| Shimano 7 to 11-speed |
HG |
| SRAM GX, X01, XX1, Eagle + SRAM “XG-” Cassettes |
XD |
| SRAM NX + all other SRAM “PG-” Cassettes |
HG |
| Single Speed Cogs (use with spacer kit, not included) |
HG |
