Designed to conquer technical singletrack while striking the ideal balance of weight, durability, and value, the Hydra2 Sector Aluminum 6-Bolt Rear Wheel is ready for all-day adventures. The We Are One Sector rim (formerly i9 Trail S V2) features a wide, hollow bead wall that guards against pinch flats. The Hydra2’s near-instant engagement gives you a quick burst out of corners and up climbs. With i9’s rugged straight-pull aluminum spokes, this wheel is a no-compromise choice, built to handle long hours in the saddle without fail.
Features
- A 65% thicker axle that’s been redesigned to dissipate stress more effectively
- Larger 6903 bearings throughout, and a new labyrinth channel and full-contact radial lip seal to keep out elements that cause premature bearing wear
- Quicker 0.41° engagement and 60% less coasting drag than its predecessor
- A new, foolproof design to ensure consistent bearing preload, regardless of variations in axle tightness
- Larger, 5.5mm pawl pockets that distribute force 26% better, preventing deformation of the pockets over years of use
- Tougher metal for the drive ring and an extra tooth on each pawl, guaranteeing Hydra2 can easily handle the torque of the most powerful e-bike motors
- A refined aluminum rim profile built for durability and consistency
- Rear Wheel
- Hub
- Rim
- Spoke
- Parts/Upgrades

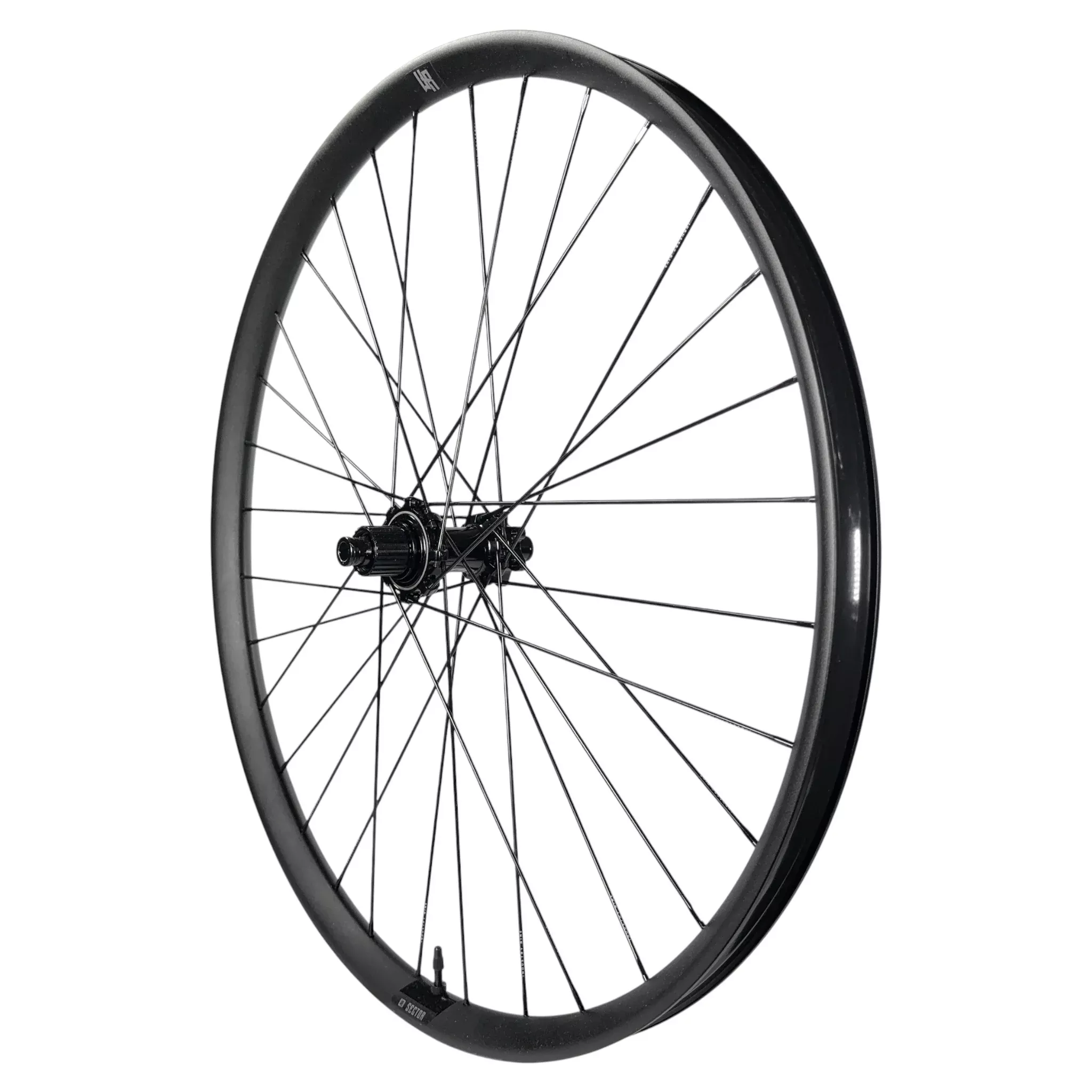

Hydra2 Sector System Aluminum Rear Wheel
| Model: | Industry Nine Hydra2 Sector System Aluminum |
| Built For: | Singletrack Seekers and Trail Tamers |
| Position: | Rear |
| Warranty: | 2 Years (Click here for details) |
| Weight: | 971 grams (29″) |
| Weight Limit: | 250lbs or 113kg max |
Wheel is shipped tubeless-ready and includes the rim tape and valve installed.
I9 Hydra 2 Hub
| Model: | Industry Nine Hydra2 |
| Rotor Mount: | 6-Bolt |
| Holes: | 32 hole |
| Points of Engagement: | 870 POE |
| Drive Ring: | 145 tooth |
| Pawls: | 6 |
| Engagement: | .41 degrees |
| Bearing: | Enduro |
| Material: | Aluminum |
WAO Sector Aluminum Rim
| Model: | We Are One Sector Aluminum |
| Tire Width: | 2.20″ – 2.50″ |
| Inner Rim Width: | 28.5mm |
| Outer Rim Width: | 36.5mm |
| Rim Depth: | 21.3mm |
| ERD: | 598 |
| Valve: | 40mm Presta |
| Material: | Aluminum |
| Rim Tape: | Included & Installed |
| Tubeless Ready: | Yes |
| Rim Weight: | 510 grams (29″) |
Industry Nine Alloy Spoke
| Model: | i9 Proprietary Alloy Spoke |
| Shape: | Straight-Pull |
| Material: | Machined Aluminum |
| Nipple: | i9 Integrated, Aluminum |
| Spoke count: | 32 |
Hydra 2 Sector Replacement Parts
| Rim: | We Are One Sector Rim |
| Freehub: | Complete Freehub Kit |
| Bearing: | Hub Bearing Kit |
| Bearing Tool Kit: | Bearing Tool Kit |
| Front Axle: | Front Hub Axle |
| Rear Axle: | Rear Hub Axle |
| Front EndCaps: | Front EndCaps |
| Rear EndCaps: | Rear EndCaps |
| Pawl: | Freehub Pawl |
| Pawl Spring: | Freehub Pawl Spring |
| Tubeless Valves: | Tubeless Valves |
