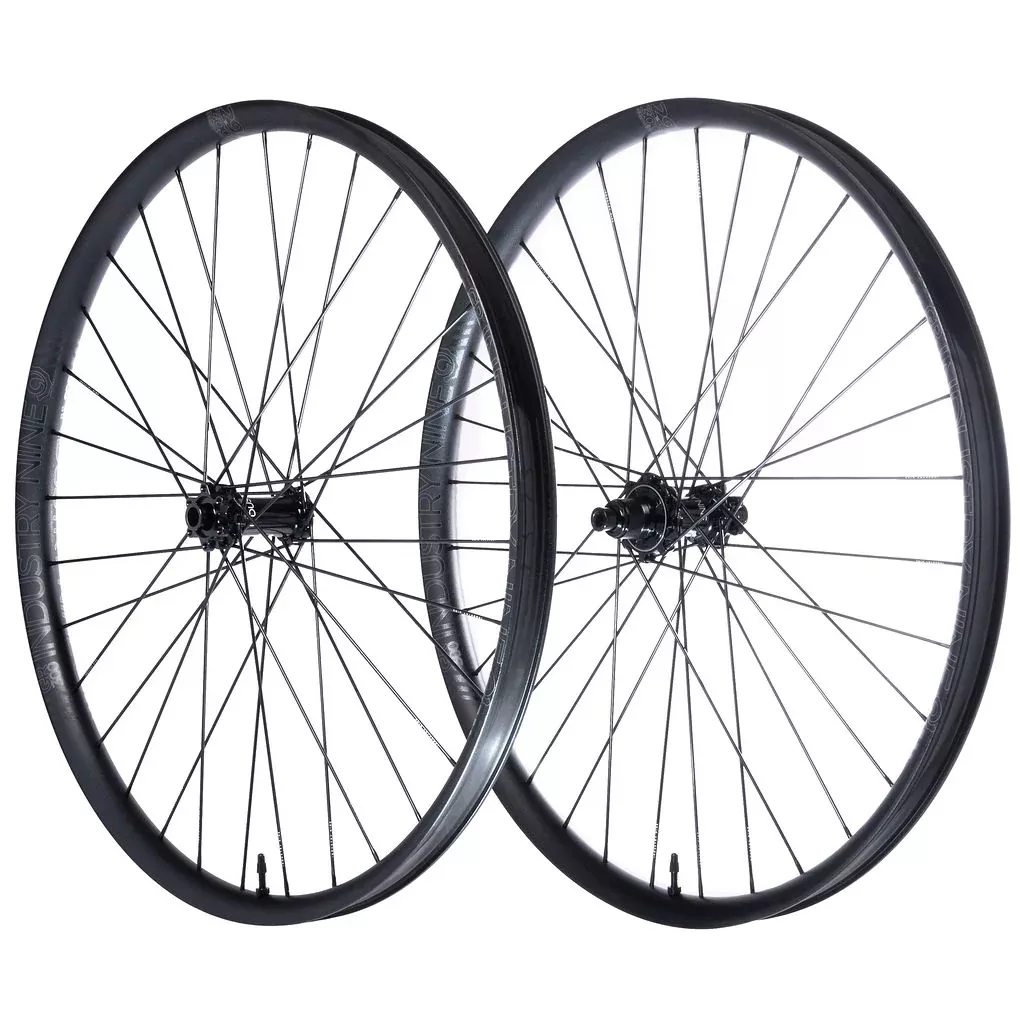

When the trail takes a steep dive and every split second matters, the Hydra2 DH 6-Bolt Wheelset is your ultimate ally. Built for tough descents, its high-volume, reinforced rim helps you stay steady on even the roughest terrain. The oversized hollow bead wall guards against pinch flats, while the rugged straight-pull aluminum spokes deliver bombproof reliability, so you can focus on the ride and let gravity take care of the rest.
Industry Nine Hydra 2 DH Features
- A 65% thicker axle that’s been redesigned to dissipate stress more effectively
- Larger 6903 bearings throughout, and a new labyrinth channel and full-contact radial lip seal to keep out elements that cause premature bearing wear
- Quicker 0.41° engagement and 60% less coasting drag than its predecessor
- A new, foolproof design to ensure consistent bearing preload, regardless of variations in axle tightness
- Larger, 5.5mm pawl pockets that distribute force 26% better, preventing deformation of the pockets over years of use
- Tougher metal for the drive ring and an extra tooth on each pawl, guaranteeing Hydra2 can easily handle the torque of the most powerful e-bike motors
Industry Nine DH Specs
- Wheelset
- Hub
- Rim
- Spoke
- Parts/Upgrades
Industry Nine DH Wheelset
| Model: | Industry Nine Hydra2 DH |
| Built For: | Downhillers and Freeriders |
| Position: | Front & Rear |
| Warranty: | 2 Years (Click here for details) |
| Weight: | 1935 grams (27.5″), 2045 grams (29″) (per wheelset) |
| Weight Limit: | 330lbs or 150kg max |
Wheels are shipped tubeless-ready and include the rim tape and valve installed.
I9 Hydra 2 Hub
| Model: | Industry Nine Hydra2 |
| Rotor Mount: | 6-Bolt |
| Holes: | 32 hole |
| Points of Engagement: | 870 POE |
| Drive Ring: | 145 tooth |
| Pawls: | 6 |
| Engagement: | .41 degrees |
| Bearing: | Enduro |
| Material: | Aluminum |
I9 Grade 300 V2 Rim
| Model: | Industry Nine Grade 300 V2 |
| Tire Width: | 2.30″ – 2.60″ |
| Inner Rim Width: | 30mm |
| Outer Rim Width: | 38mm |
| Valve: | 40mm Presta (color matched to hub) |
| Material: | Aluminum |
| Rim Tape: | Included & Installed |
| Tubeless Ready: | Yes |
| Rim Weight: | 590g (27.5″), 630g (29″) |
Industry Nine Alloy Spoke
| Model: | i9 Proprietary Alloy Spoke |
| Shape: | Straight-Pull |
| Material: | Machined Aluminum |
| Nipple: | i9 Integrated, Aluminum |
| Spoke count: | 32 |
Hydra 2 Ceramic Upgrades
| Freehub: | Ceramic Freehub Kit |
| Bearings: | Ceramic Bearing Kit |
Hydra 2 DH Replacement Parts
| Rim: | Grade 300 V2 Rim |
| Freehub: | Complete Freehub Kit |
| Bearing: | Hub Bearing Kit |
| Bearing Tool Kit: | Bearing Tool Kit |
| Front Axle: | Front Hub Axle |
| Rear Axle: | Rear Hub Axle |
| Front EndCaps: | Front EndCaps |
| Rear EndCaps: | Rear EndCaps |
| Pawl: | Freehub Pawl |
| Pawl Spring: | Freehub Pawl Spring |
| Tubeless Valves: | Tubeless Valves |
