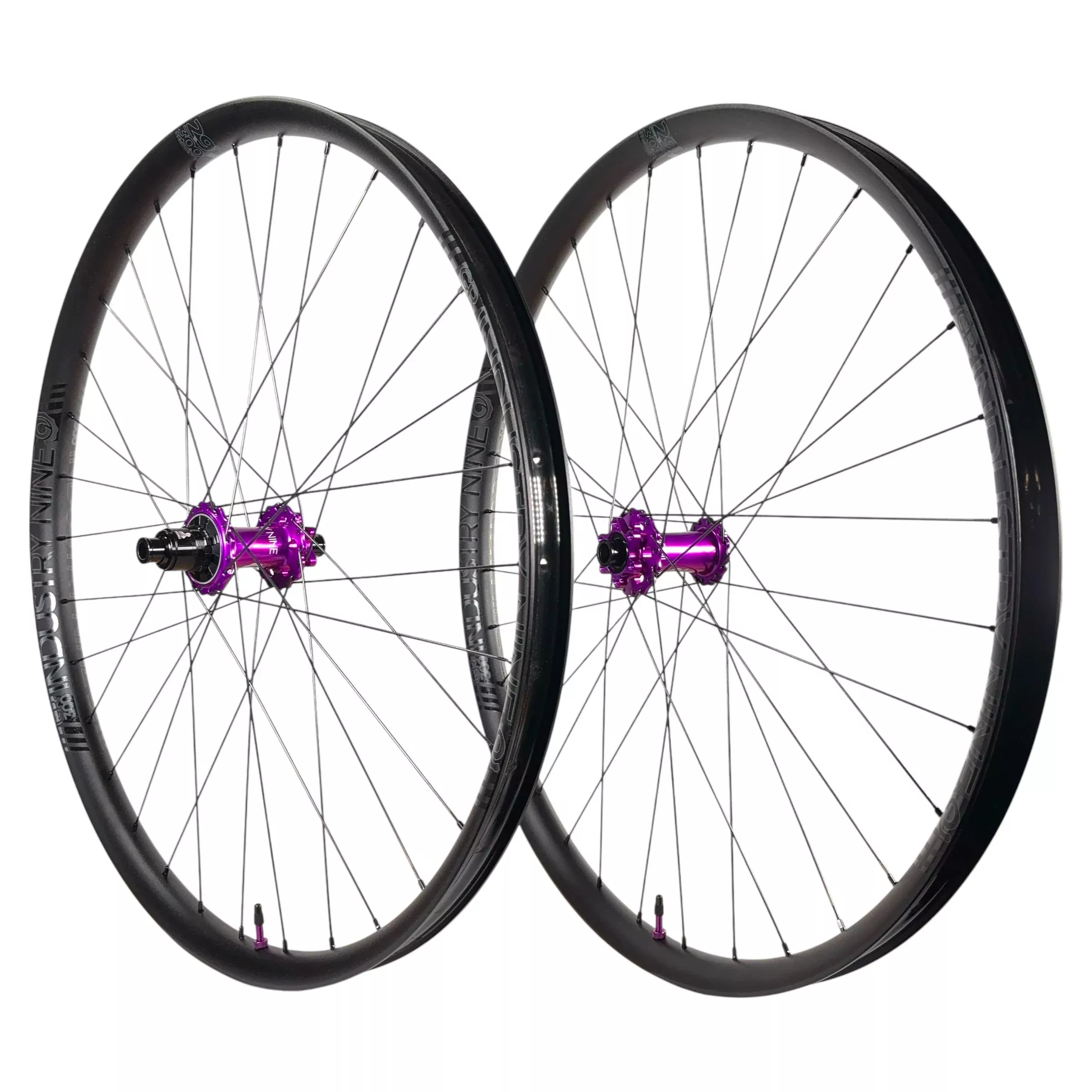

The Hydra2 DH-S combines i9’s toughest aluminum rims with j-bend steel spokes to keep costs down while providing a wheelset that can withstand the harshest DH trails worldwide. Thanks to the hollow bead wall technology, pinch flats are a thing of the past, and Hydra2’s instant engagement gives you the precision needed to nail your dream lines. Whether you’re tackling big hits on the descent or powering back up on the latest e-bikes, the Hydra2 DH-S is built to handle it all.
Industry Nine Hydra 2 DH-S Features
- A 65% thicker axle that’s been redesigned to dissipate stress more effectively
- Larger 6903 bearings throughout, and a new labyrinth channel and full-contact radial lip seal to keep out elements that cause premature bearing wear
- Quicker 0.41° engagement and 60% less coasting drag than its predecessor
- A new, foolproof design to ensure consistent bearing preload, regardless of variations in axle tightness
- Larger, 5.5mm pawl pockets that distribute force 26% better, preventing deformation of the pockets over years of use
- Tougher metal for the drive ring and an extra tooth on each pawl, guaranteeing Hydra2 can easily handle the torque of the most powerful e-bike motors
Industry Nine DH-S Specs:
- Wheelset
- Hub
- Rim
- Spoke
- Parts/Upgrades
I9 DH-S Wheelset
| Model: | Industry Nine Hydra2 DH-S |
| Built For: | Full E and Full Send |
| Position: | Front & Rear |
| Warranty: | 2 Years (Click here for details) |
| Weight: | 2045 grams (27.5″), 2165 grams (29″) (per wheelset) |
| Weight Limit: | 330lbs or 150kg max |
Wheels are shipped tubeless ready and include the rim tape and valve installed.
I9 Hydra 2 Hub
| Model: | Industry Nine Hydra2 |
| Rotor Mount: | 6-Bolt |
| Holes: | 32 hole |
| Points of Engagement: | 870 POE |
| Drive Ring: | 145 tooth |
| Pawls: | 6 |
| Engagement: | .41 degrees |
| Bearing: | Enduro |
| Material: | Aluminum |
I9 Grade 300 V2 Rim
| Model: | Industry Nine Grade 300 V2 |
| Tire Width: | 2.30″ – 2.60″ |
| Inner Rim Width: | 30mm |
| Outer Rim Width: | 38mm |
| Valve: | 40mm Presta (color matched to hub) |
| Material: | Aluminum |
| Rim Tape: | Included & Installed |
| Tubeless Ready: | Yes |
| Rim Weight: | 590g (27.5″), 630g (29″) |
Sapim Race Spoke
| Model: | Sapim Race 14g |
| Shape: | J-Bend |
| Material: | Steel |
| Nipple: | Sapim alloy double lock |
| Spoke count: | 32 |
Hydra 2 Ceramic Upgrades
| Freehub: | Ceramic Freehub Kit |
| Bearings: | Ceramic Bearing Kit |
Hydra 2 Replacement Parts
| Rim: | Grade 300 V2 Rim |
| Freehub: | Complete Freehub Kit |
| Bearing: | Hub Bearing Kit |
| Bearing Tool Kit: | Bearing Tool Kit |
| Front Axle: | Front Hub Axle |
| Rear Axle: | Rear Hub Axle |
| Front EndCaps: | Front EndCaps |
| Rear EndCaps: | Rear EndCaps |
| Pawl: | Freehub Pawl |
| Pawl Spring: | Freehub Pawl Spring |
| Tubeless Valves: | Tubeless Valves |
