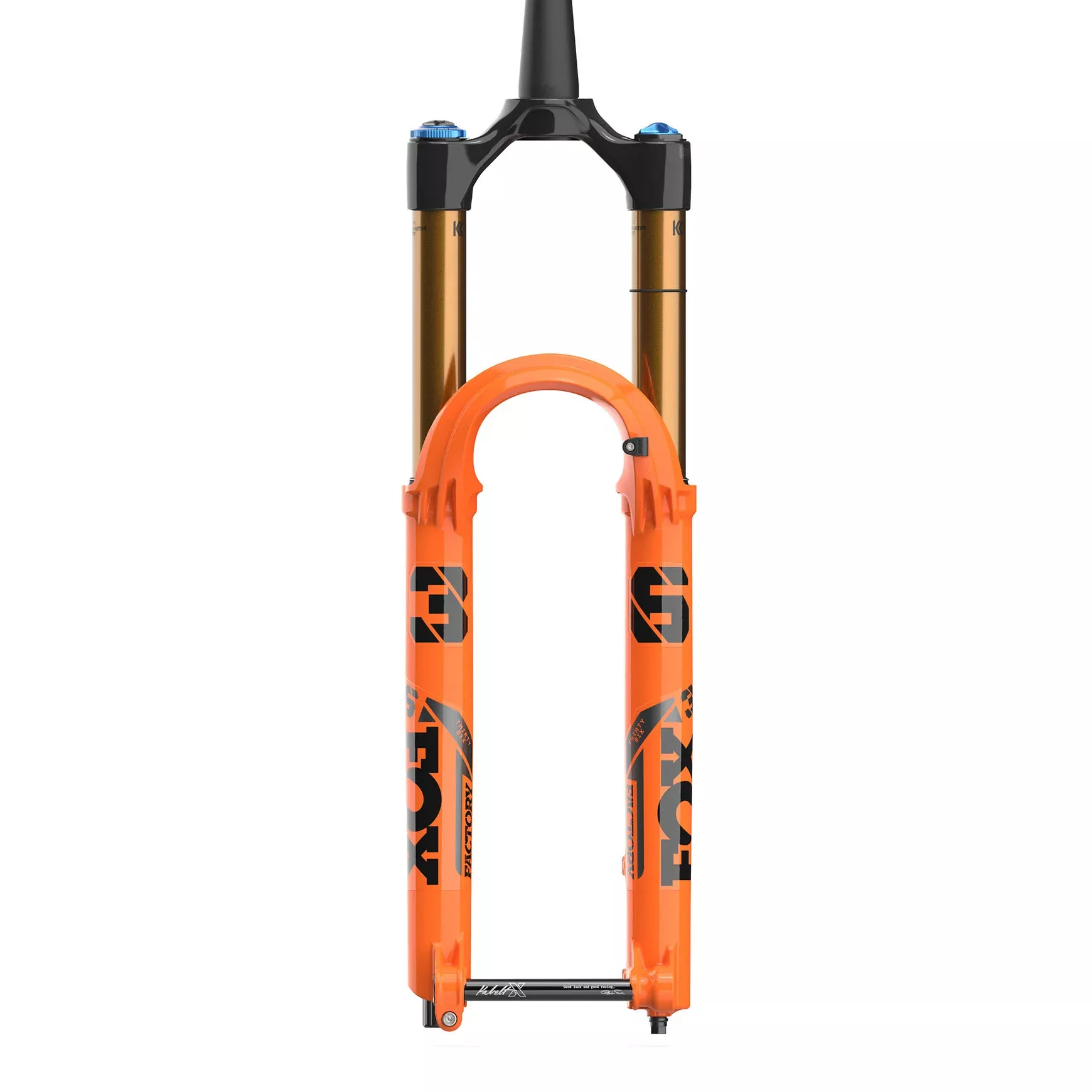

The Undisputed All-Mountain champion gets a new crown.
For MY23 the FOX 36 receives an update in the form of a new crown with updated design and engineering for more steer tube overlap improving durability and maintaining stiffness while dropping 20 grams.
GRIP2
Our GRIP2 damper is the benchmark for unparalleled ride quality and ultra-precise adjustability. GRIP2 includes our patented Variable Valve Control (VVC) technology which allows for external fine-tuning of suspension performance. GRIP2 achieves with the twist of a knob what typically requires the time consuming and complicated task of completely disassembling and reassembling the fork.
FLOATING AXLE
Floating axles might look similar to other axles, but in fact they offer a distinct performance advantage due to their unique ability to match the exact width of the fork’s wheel mounting surface precisely to the front hub flange spacing, thus creating perfect chassis alignment and eliminating unwanted friction between the upper and lower fork legs. Floating axles provide much smoother suspension movement throughout the entire range of the fork’s travel, notably improving sensitivity and overall ride quality.
The all-new 36 and 38 come equipped with a new quick-release lever operated patent-pending floating axle system, combining the benefit of a floating axle with the ease of a tool-free quick-release. With this system, spacing is locked in via a floating sleeve, allowing repeated front wheel removal and reinstallation while maintaining perfect fork alignment. Floating sleeve positioning comes preset from the factory so if you are unsure of how to operate the floating axle system or simply don’t want to bother with it, you can just install the front wheel and get on with your ride.
Available optionally is the new Kabolt-X, a lightweight bolt-on floating axle exclusively for the all-new 36 and 38 that not only shaves grams but also increases torsional stiffness via its sleeveless, single-sided pinch bolt design. Chassis alignment must be reset each time the front wheel is removed and reinstalled on both the Kabolt-X and 40 floating axles, but the end result is the same – perfect alignment and perfect performance.
LOWER LEG BYPASS CHANNELS
As a fork compresses, the air volume within the lower legs decreases, increasing air pressure. The more the fork compresses, the more pressure increases. This effect can have the unintended consequence of preventing full travel from being achieved. Our lower leg channels help alleviate this issue by dramatically increasing air volume within the lower legs and thereby reducing the amount of additional unintended pressure ramping.
Another benefit of these channels is that lower leg bath oil is circulated to the upper reaches of the lower legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its travel.
BLEEDERS
Our lower leg bleeders allow for atmospheric pressure equalization at the simple press of a button. Pressure build-up in the lower legs dramatically decreases fork performance, preventing full travel from being achieved, and diminishing small bump sensitivity and responsiveness.
- Spring: Updated Float EVOL air spring.
- Damper: GRIP2 with VVC, external HSC / LSC and HSR / LSR.
- Axle: 15mm x 110mm Boost. Floating axle design. Available in Kabolt-X Bolt-Up or Quick-Release.
- Offset: 44mm
- Wheel size: 29″
- Steerer Tube: 1-1/8″ – 1.5″ Tapered
- Stanchion Diameter: 36mm
- Colour: Gloss Factory Orange or Gloss Black
- Travel: Available in 150mm or 160mm (130mm – 170mm air shafts available)
- Brake Mount: 180mm direct Post Mount, up to 230mm with adapter
- Optional bolt-on mud guard available
Can’t see your preferred travel option available? Get in touch – we can convert it for you at no charge (provided the air shaft is in stock).
