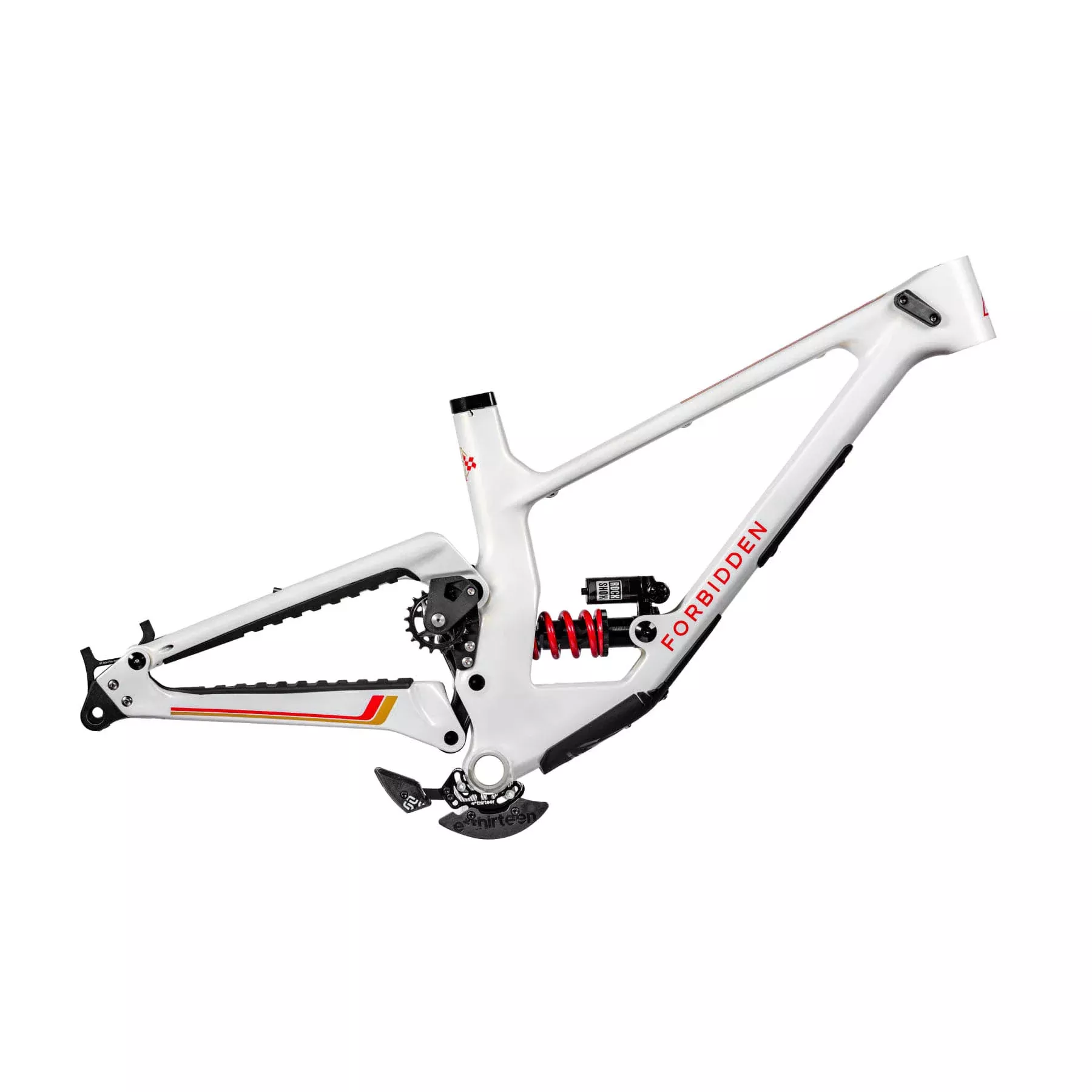

Finally, the big cat is completely out of the bag. It’s been a while since our prototype DH bike was first spotted on the WC stage under Connor Fearon. Since then we’ve been honing every detail and specification to ensure this bike is comprised purely of the material needed to deliver a fighter jet of a downhill mountain bike.
There is no filler here, folks. This bike is designed and built for a single purpose: Get you down the hill faster.
So, what happens when you ride a bike with the industry’s most refined high pivot design equipped with 205mm of rear wheel travel? You remain composed and comfortable across the knottiest root balls and rowdiest rock gardens. You develop a new penchant for committing to corner speeds and line choices that old-you would never dream of. You go in over your head and get out with a shit-eating grin. You get a DH bike with zero compromises.
You get the Supernought.
INTENDED USE: DH Race
SUSPENSION: 205mm Rear / 200mm Front
WHEEL SIZE: Full 29er or Mixed (MX)
REAR SHOCK: Rockshox Super Deluxe Ultimate Coil DH
V2 FRAME LAYOUT
The V2 Trifecta Platform allows us to fine tune kinematics for each bike. Our Factory Team wanted more sensitivity and grip. So we delivered a DH optimized leverage curve and braking characteristics. The end result is a bike that begs you to stay off the brakes a little longer and remains completely composed when the anchors are dropped.
HARDWARE
The bearing-in-rocker design of our new forged Rate Control Linkage allows us to use locking collet axles and oversized bearings for easy maintenance and dependability. This option isn’t the lightest but trading a few grams for a long-lasting, easily serviced linkage, is a no-brainer.
MODULAR DROP OUTS
Straight from the World Cup pits. By using modular dropouts we’ve added another level of performance tuning to your ride. Dropouts are easily swapped for different wheel sizes as well as meaningful geometry and weight bias adjustments.
Technical Information
FORK LENGTH (MAX. AXLE TO CROWN)
611mm
RECOMMENDED FORK OFFSET
46mm, 48mm, 52mm
SHOCK LENGTH (EYE – EYE)
225mm
SHOCK STROKE
75mm
RECOMMENDED HEADSET
ZS49/28.6 | EC49/30
SHOCK HARDWARE
30x8mm Lower | Trunnion Upper
REAR DROPOUT SPACING (O.L.D.)
148mm
BOTTOM BRACKET
83mm BSA Threaded
CHAIN LINE
56.5mm
MAX CHAIN RING
S1: 34T S2: 34T S3: 36T S4: 38T
SEAT POST DIAMETER
31.6mm
BRAKE MOUNT
200mm Post Mount
ISCG 05
Lower Tabs Only
RECOMMENDED TIRE SIZE
29 x 2.4
MAX. TIRE SIZE
29 x 2.5
