Built for riders who refuse to compromise, the TRP EVO PRO Complete Brake Kit is engineered for the most demanding mountain biking disciplines where race-ready performance isn’t optional, it’s essential.
Carrying on the legacy of the legendary DH-R EVO, TRP didn’t cut corners in developing its successor. The EVO PRO was shaped through direct collaboration with elite athletes competing on the World Cup DH circuit, with real-world feedback and rigorous testing data driving every design decision. The result is a brake that doesn’t just meet the bar, it raises it.
Riders gain greater control than ever before thanks to a refined reach and pad adjust dial, allowing for a truly personalized feel that adapts to your riding style and conditions. This is the next EVOlution in TRP braking performance.

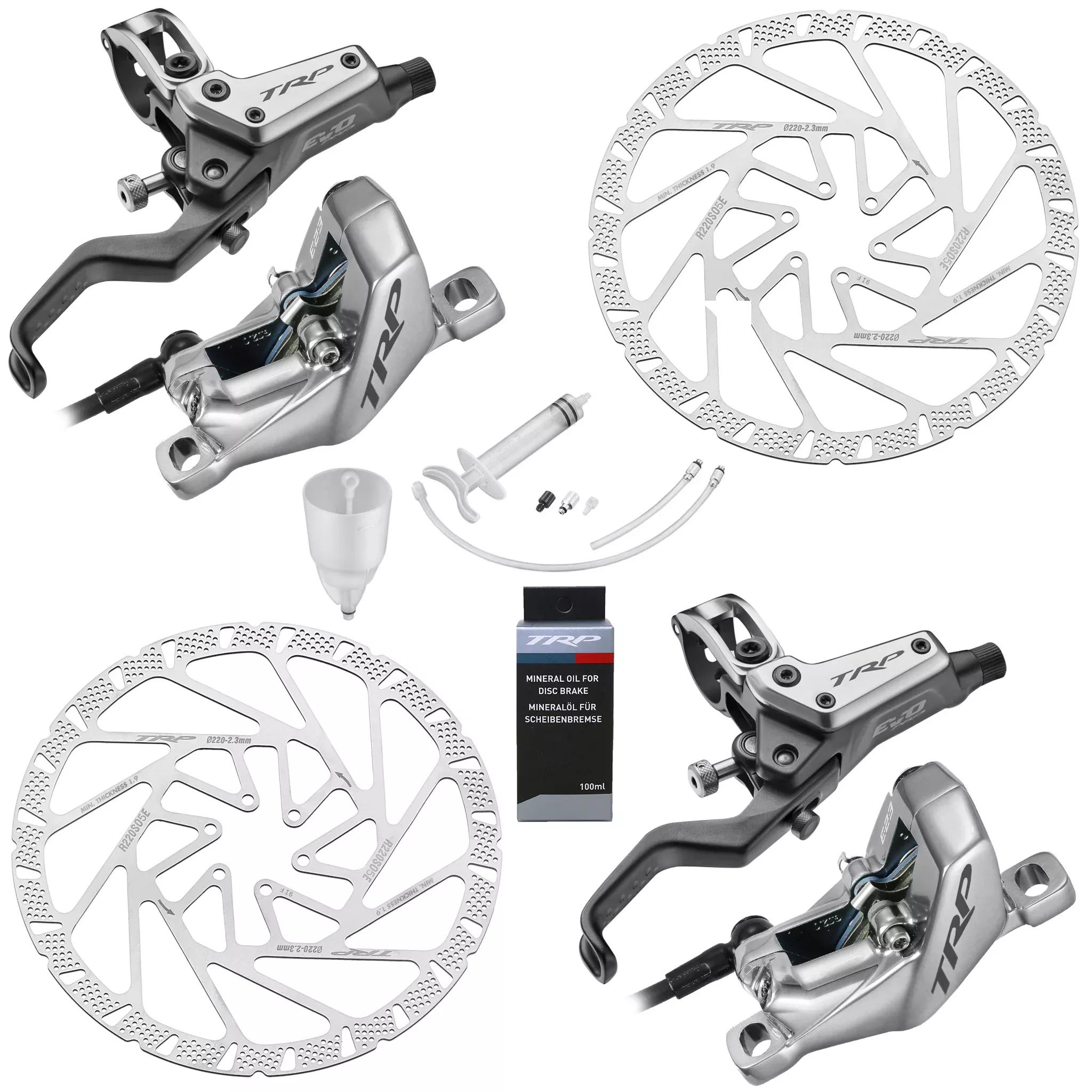

Every EVO PRO Complete Brake Kit includes your choice of 6-bolt or centerlock rotors and a TRP bleed kit.
Features
- The Pad Activation Dial (PAD) provides modulation adjustment, allowing the user to customize how the brake feels during the lever stroke
- The lever reach adjuster for personalized ergonomics allows the user to fine-tune the lever blade position to match their hand size and riding preference
- Ergonomic, sportive lever blade for increased comfort and control
- Clean cockpit design streamlines cable path for internal or external routing
- Race-proven technology delivering exceptional braking power and consistency
- High-flow 4-piston caliper for strong, reliable braking performance
- Easy setup and maintenance for a seamless service experience
Details
- Kit Includes
- Brake Set
- Rotor
- Bleed Kit
- Parts
Kit Includes
| Brake Set: | TRP EVO Pro, Left & Right Brakes |
| Rotor: | Qty 2 6-bolt (RS01E, RS05E Race) or center lock (RC04E) rotors of your choice |
| Oil: | TRP Mineral Oil |
| Bleed Kit: | TRP Disc Brake Bleed Kit |
Brake Set
| Model: | TRP EVO Pro |
| Position | Front/Left & Rear/Right Included |
| Caliper Pistons: | 4-Piston |
| Caliper Mount: | Post Mount |
| Brake Pads: | TRP Performance Resin (Installed) |
| Lever Mount: | 22.2mm Clamp |
| Shifter Mount: | I-Spec EV, MMX (Sold separately) |
| Hose: | TRP 5.0mm (Front: 1900mm; Rear: 1900mm)(Included) |
| Fittings: | All fittings needed for install are included |
RS01E 6-Bolt Rotor
| Model: | RS01E |
| Hub Mount: | 6-Bolt |
| Sizes: | 180mm, 203mm, 220mm, 223mm |
| Thickness: | 2.3mm |
RS05E 6-Bolt Rotor
| Model: | RS05E Race |
| Hub Mount: | 6-Bolt |
| Sizes: | 203mm, 220mm |
| Thickness: | 2.3mm |
RC04E Centerlock Rotor
| Model: | RC04E |
| Hub Mount: | Centerlock |
| Lock Ring: | Not Included |
| Sizes: | 180mm, 203mm |
| Thickness: | 2.3mm |
Bleed Kit
| Model: | TRP Bleed Kit |
| Includes: | Syringe, Plastic tubing for syringe/caliper, Plastic tubing for lever/overflow, M5 Silver bleed fitting (for Slate lever), 2 M6 Silver bleed fittings (DH-R, Trail, Quadiem, all calipers), 1 M7 Black bleed fitting (For older model calipers with bleed nipple), Bleed Cup |
| Oil: | TRP Mineral Oil – 100ml |
Compatibility & Parts
The TRP EVO Pro Complete Brake Kit is compatible with the following:
| Brake Pads: | TRP 4-Piston,MTX Gold Label,MTX Red Label |
| Caliper: | EVO Pro Caliper |
| Caliper Adapter: | Disc Brake Caliper Adapter |
| Lever: | EVO Pro Lever |
| Lever Blade: | EVO Pro Lever Blade Kit |
| Shifter Adapter: | EVO Pro Shifter Adapter Kit |
| Hose: | Disc Brake Hose Kit (5.0mm) |
| Olive & Barb: | 5.0mm Olive & Barb |
| Mineral Oil: | TRP Mineral Oil |
