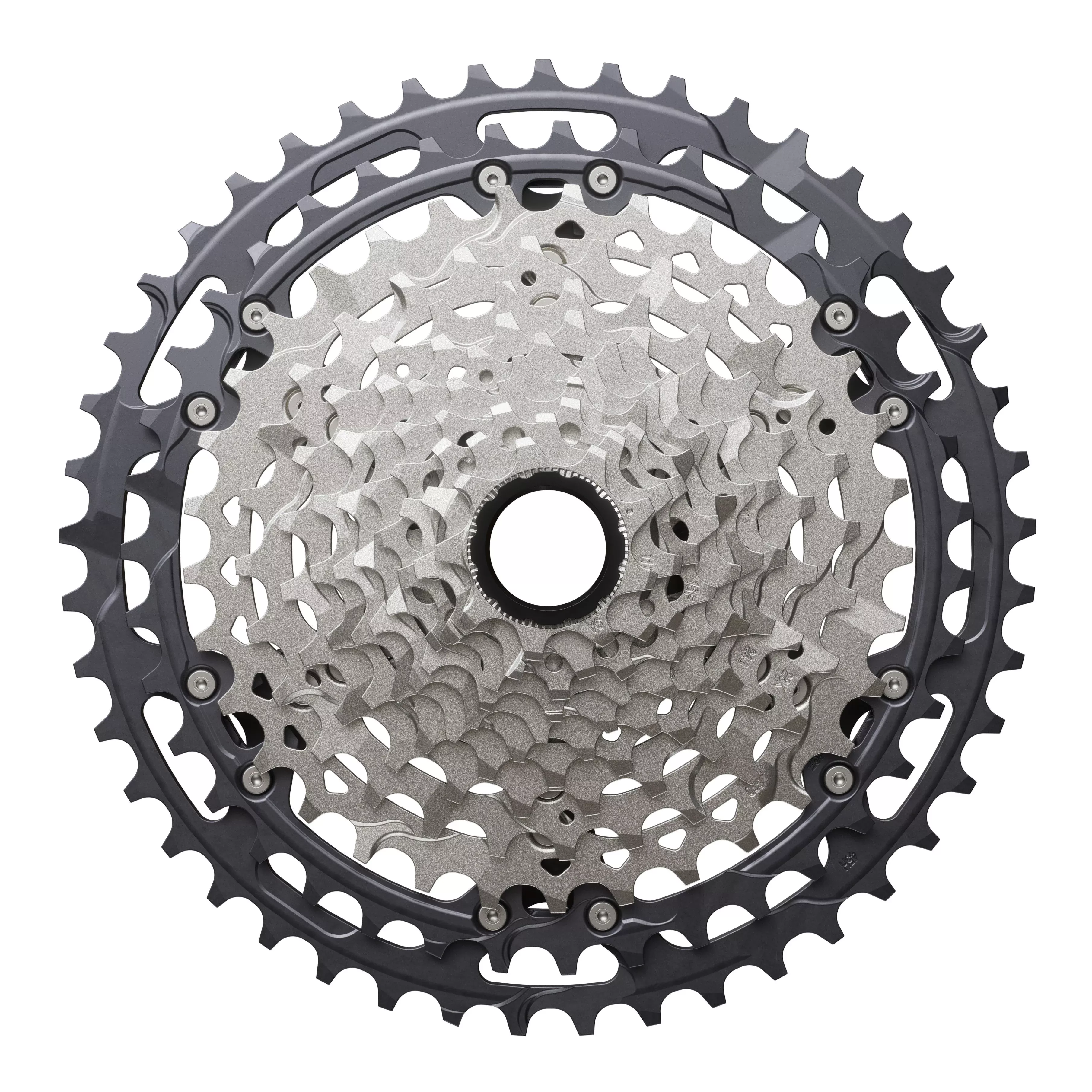

Engineered for smooth, high-performance shifting under pressure, the M8200 cassette is the latest advancement in Shimano’s HYPERGLIDE+ technology. With redesigned tooth profiles and a wide 10–51T range, it delivers fast, quiet, and precise gear changes across a massive 510% range. Micro Spline compatibility ensures modern drivetrain fit, while a mix of steel and alloy cogs balances durability and low weight for aggressive trail riding or endurance adventures.
Features:
-
510% Gear Range: Shimano’s widest DEORE XT gear range offers maximum climbing power and versatility.
-
Freehub Compatibility: Designed to work seamlessly with Micro Spline freehub bodies.
-
Optimized Construction: Lightweight alloy and steel construction delivers long-lasting performance without the bulk.
XT M8200 Cassette Specs:
- 9-45t
- 10-51t
- Compatibility
9-45t
| Model: | XT M8200 |
| Model ID: | CS-M8200 |
| Rear Speeds: | 12-speed |
| Range: | 500% |
| Cog Sizes: | 9-11-13-15-17-19-21-24-28-33-39-45t |
| Chainline: | 55mm |
| Freehub Interface: | Micro Spline |
| Technology: | Hyperglide+ |
| Material: | Steel, and alloy cogs |
| Drive Config: | 1x |
| Weight: | 422 g |
| Installation Note: | Requires the Shimano TL-LR21 Cassette Tool for installation. |
10-51t
| Model: | XT M8200 |
| Model ID: | CS-M8200 |
| Rear Speeds: | 12-speed |
| Range: | 510% |
| Cog Sizes: | 10-12-14-16-18-21-24-28-33-39-45-51t |
| Chainline: | 55mm |
| Freehub Interface: | Micro Spline |
| Technology: | Hyperglide+ |
| Material: | Steel, and alloy cogs |
| Drive Config: | 1x |
| Weight: | 458 g |
Compatibility
The Shimano XT M8200 Cassette is backward compatible with previous generation Shimano 12-speed chains and drivetrains. Compatible models include: XTR M9100 and M9200, Deore XT M8100, SLX M7100, and Deore M6100.
The XT M8200 Cassette is compatible with the following:
| Freehub: | Shimano Micro Spline |
| Rear Derailleur (9-45t): | Medium Cage: XT RD-M8200-GS |
| Rear Derailleur (10-51t): | Long Cage: XT RD-M8200-SGS |
| Chain: | 12-speed HG: XTR M9100, Deore XT M8100, SLX M7100, Deore M6100 |
