The Shimano Deore XT Groupset is the original trusted mountain bike groupset, beloved by mountain bikers worldwide. No matter the trail or ride, XT delivers reliable shifting, superior braking, and easy maintenance. Engineered for high performance, this groupset is a dependable workhorse for all your mountain biking needs. This kit now includes the new Deore XT M8200 cassette.

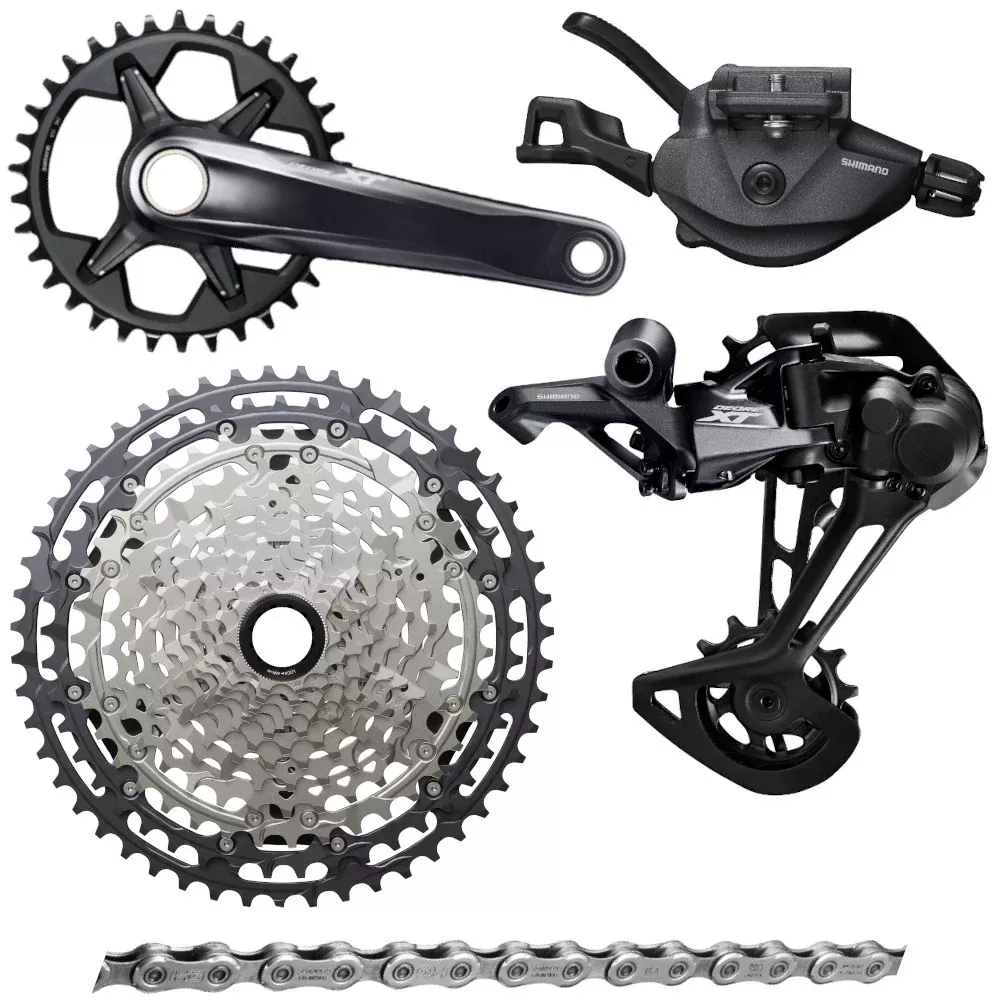

Shimano Deore XT Groupset Includes:
Shimano Deore XT M8100 Series Crank Arms
| Model: | Hub Spacing: | Chainline: | Q-factor: | Weight: |
| FC-M8100 | 135/142mm or 141/148mm (Boost) | 52mm | 172mm | 620 grams |
| FC-M8120 | 141/148mm (Boost) | 55mm | 178mm | 628 grams |
| FC-M8130 | 157mm (Superboost) | 56.5mm | 181mm | 636 grams |
Shimano Deore XT SM-CRM85 Chainring
- Available sizes: 28t, 30t, 32t, 34t, 36t
Shimano CS-M8200-12 Cassette
- Cogs: 10-51t: 10-12-14-16-18-21-24-28-33-39-45-51
- Freehub Interface: Microspline
- Average Weight: 10-51t: 458 grams
Shimano SL-M8100-IR Shift Lever
- Mount: I-SPEC EV
- Max Multiple Shifts: 4
- Shifter Type: Rapidfire Plus
- Average Weight: 120 grams
Shimano RD-M8100 Rear Derailleur
- Cage Length: SGS/Long
- Max Low Sprocket: 51t
- Min Low Sprocket: 45t
- Pulley Size: 13t
- Average Weight: 284 grams
Shimano CN-M8100 Chain
- of Links: 138
- Roller Link Plate: Sil-Tec
- Quick Link included
