Details:
- Series: Deore XT M8100
- Speeds: 12-speed
- Material: Aluminum
- P.C.D: Direct
- Bottom bracket not included
- Chainring not included

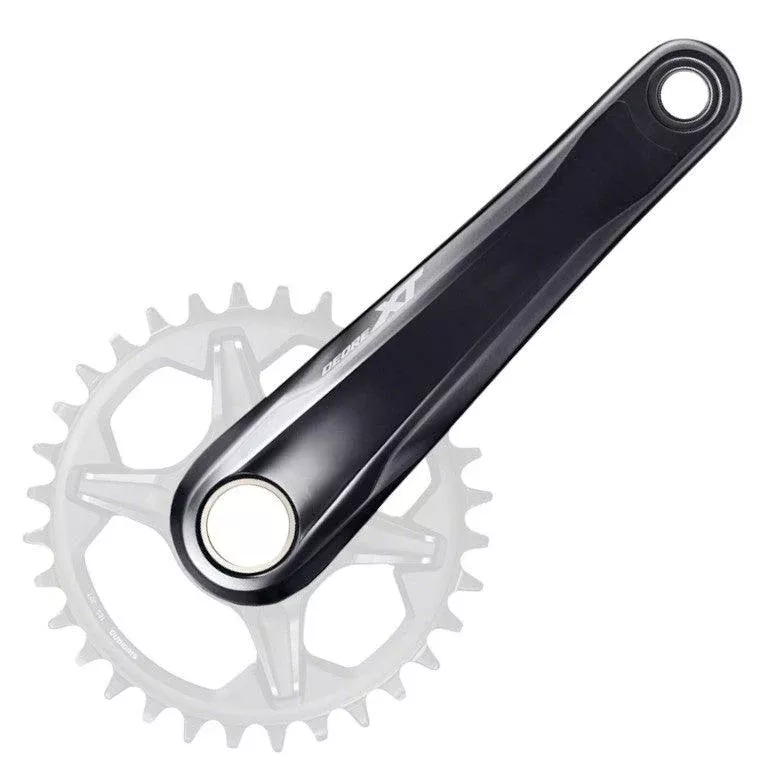

Shimano Deore XT FC-M8100 Crank Arms
- Hub Spacing: Non-Boost (135/142mm) & Boost (141/148mm)
- Chainline: 52mm
- Q-factor: 172mm
- Average weight (32t): 620 grams
Shimano Deore XT FC-M8120 Crank Arms
- Hub Spacing: Boost (141/148mm)
- Chainline: 55mm
- Q-factor: 178mm
- Average weight (32t): 628 grams
Shimano Deore XT FC-M8130 Crank Arms
- Hub Spacing: Superboost (157mm)
- Chainline: 56.5mm
- Q-factor: 181mm
- Average weight (32t): 636 grams
Compatibility:
The Shimano Deore XT Crank Arms are compatible with the following:
- Chain: Shimano HG 12-speed chains
- Chainring: Shimano direct mount chainrings: CRM75, CRM85, CRM95
- Bottom Bracket: Shimano Hollowtech II Bottom Brackets
- Pedal: All 9/16″ pedals
